Electrostatic filter for smoke gas 3000 m3/h
Electrostatic filter for smoke gas 3000 m3/h
Electrostatic filter for smoke gas 3000 m3/h
Electrostatic filter for smoke gas 3000 m3/h

Electrostatic filter for smoke gas 3000 m3/h

€2,990.00

Description

The electrostatic precipitator makes it possible to remove dust from flue gas. For this purpose, it uses the electrostatic force operating on these particles of dust. As a result of high voltage, particles of dust receive an electric charge. Due to this, with the use of electrophoresis, the dust is deposited on the electrode with the opposite charge
  • The electrostatic precipitator's operation is based on the precipitation of dust from the stream of flue gas and its deposition on the surface of cumulative electrodes under the effect of the electrostatic force.

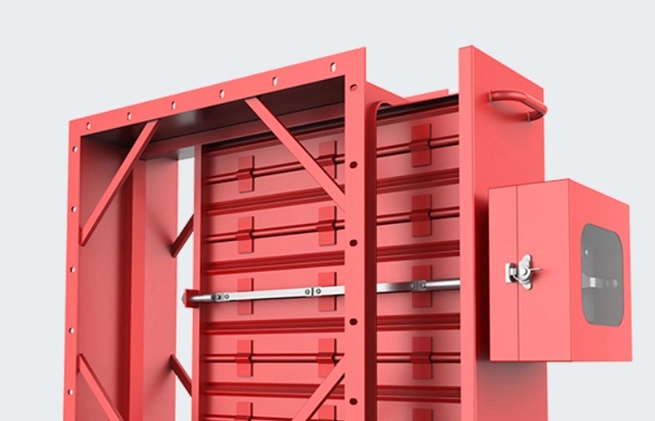

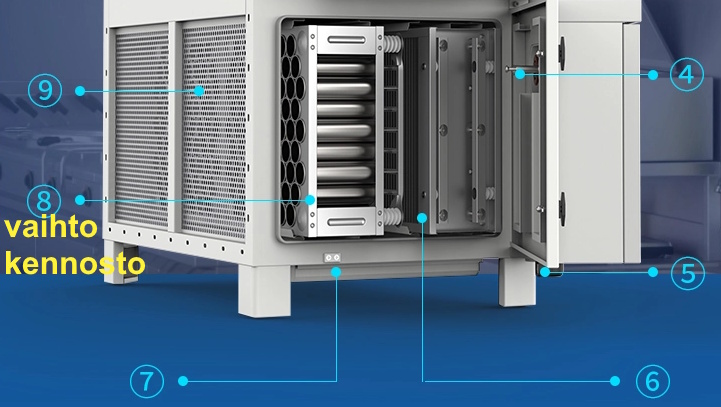

    The electrostatic precipitator contains: a electrode, a fastening bar with a ceramic insulator, a cover made from acid-resistant steel, as well as a power supply unit with a high voltage generator.
    The electrode generating corona discharges is made from steel. The electrode was placed in the flue gas duct. The system of insulated electrodes is fed with high voltage by means of a high voltage generator. The discharge electrode consists of the earthed walls duct (made from acid-resistant steel). The dust, which is precipitated from flue gas, is deposited on the walls.
    The electrostatic precipitator is also characterized by a simple installation process and ease of operation.
  • Power 677W
  • Air Flow 3000 m3/h
  • Size L*W*H 735×803×886
  • Weight 102 kg
  • Power supply 1P+N+PE AC220 50HZ
  • Material of Construction: AISI304 stainless steel filter cells, A3 carbon steel housing
  • Pressure drop 110 PA

    Options

  • Active carbone filter
  • Ash remove box

    • Features

    • Model: BS-3k
    • Shipping Weight: 270lbs
